Every monitoring method, unified
From ShadowCuff to smartphone, every device reports into one live tracking platform.
What is the Shadowtrack monitoring ecosystem?
Shadowtrack's monitoring and tracking ecosystem covers every level of electronic monitoring on one platform: smartphone monitoring, the ShadowCuff GPS ankle monitor, the wrist-worn ShadoWatch device, ShadowBeacon, and ShadowGateway interior tracking, so agencies can step supervision up or down without changing systems.
One device family for every form of supervision
From a hardened ankle cuff to interior tags that read movement inside a facility, each device is built for a different mandate, and every one of them reports into the same live platform.
ShadowCuff
Hardened continuous GPS tracking for the highest-risk supervision.
ShadoWatch
Continuous monitoring in a lower-profile, wrist-worn form.
ShadowTether + Gateway
Maps movement room-to-room inside a facility, where GPS can't reach.
ShadowBeacon
An in-home RF transmitter that pairs with the ShadowCuff for consistent indoor location.
ShadowPhone
A fully locked-down handset issued by the agency, a tracking device in its own right, EnrolleeApp pre-installed.
A closer look at every device
Starting with ShadowCuff, the hardened ankle monitor built for the highest-risk supervision.

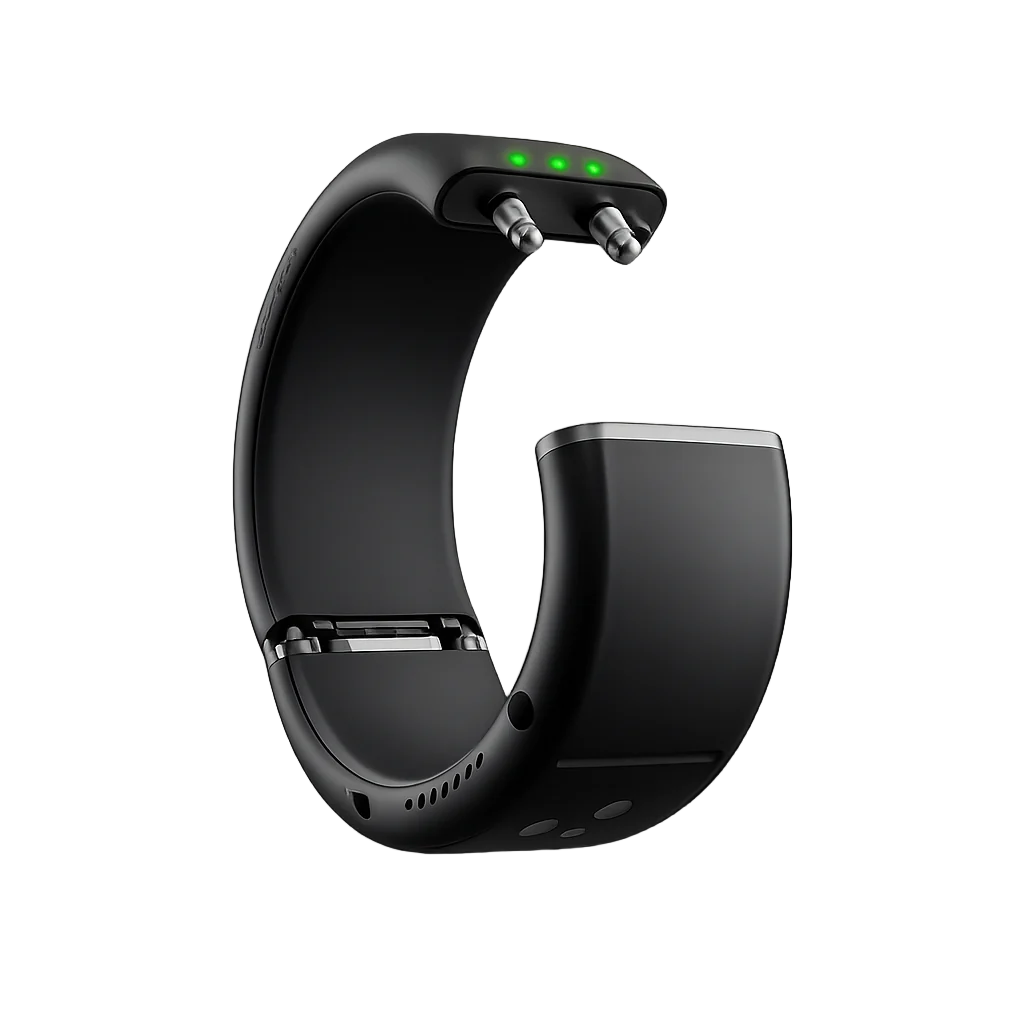

ShadowCuff
The primary continuous tracker: a hardened ankle monitor for the cases that demand uninterrupted location, streaming position day and night. When assurance can't lapse, this is the device that goes on the person.
On in under 20 seconds, no tools
Applied in seconds without cutting tools. A patented titanium-reinforced body makes ShadowCuff highly durable and cut-resistant, so the device that goes on stays on.
Tool-free
No cutting tools or special equipment required.
Under 20 seconds
Fitted and reporting in a single quick step.
Titanium-reinforced
Patented, highly durable and cut-resistant.
Two ways to release
A cuff should never be stuck on a person when it needs to come off. ShadowCuff supports two independent removal paths.

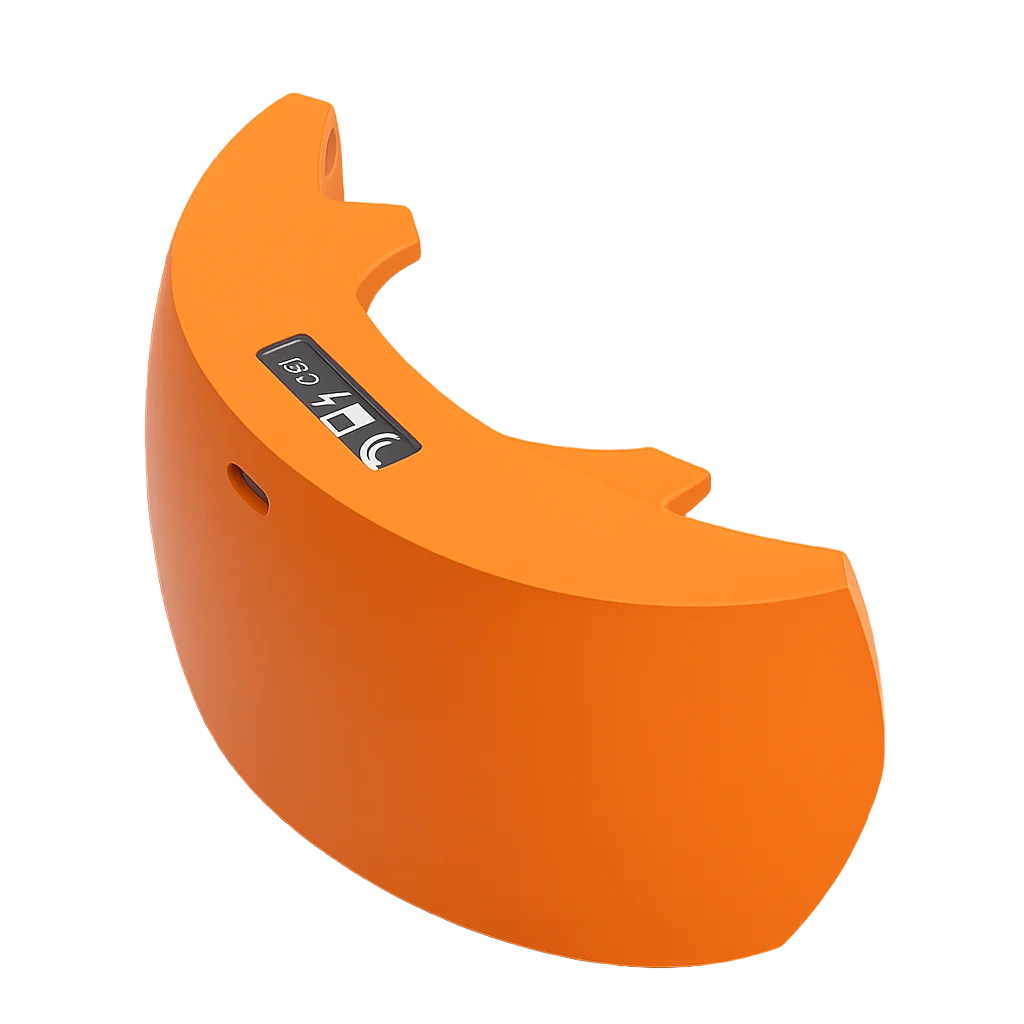

Officer key
A physical key releases the cuff on-site in seconds. No cutting, no special tools.
Remote command
Release straight from the platform: click a button and enter a note or reason. Every remote removal is logged.
Location points that adapt to the case
Reports a location every 30 seconds by default, with configurable intervals to balance detail against battery life, delivering superior GPS and Wi-Fi points that stay accurate even in tough conditions.
Days of runtime, years of life
ShadowCuff performance data
- Satellite positioning
- GNSS: GPS, Galileo, GLONASS, BeiDou
- Supplemental locating
- Wi-Fi & cellular
- Tracking / reporting interval
- 30 sec (GPS/Wi-Fi), 1 min default, configurable
- Data communication
- Multiple 4G GSM networks
- Water resistance
- IP68, submersible to 16.4 ft
- Offline storage
- 30 days, auto-syncs on reconnection
- Installation
- Tool-free, under 20 seconds
- Removal
- Officer key or software command
- Vibration alerts
- Low battery, zone violation, officer-initiated
- Audio alerts
- Real-time notifications via software
- Operating temperature
- 5° to 131°F
- Construction
- Patented titanium-reinforced, cut-resistant
- Battery per charge
- 80+ hrs (up to 100 hrs optimal)
- Battery lifespan
- ~5 years
- FCC identifier
- 2ATA2-BRMV7
14 configurable alarm conditions
Each can trigger officer notifications and enrollee vibration or audio alerts.
- Device Com Timeout
- Device Com Timeout Escalated
- Failed To Charge
- Band Tamper
- Within Exclusion Zone
- Outside Inclusion Zone
- Lack Of Motion
- Battery Critical
- No Location
- No Location Escalated
- Motion No Location
- Motion No Location Escalated
- Within Exclusion Buffer Zone
- Within Inclusion Buffer Zone
ShadowGuardian victim app
Victims download the app and sign their agreement digitally, linked to the enrollee’s record. A floating protection zone then travels with them at all times.
Floating protection zone
A zone surrounds the victim wherever they go, with buffer zones on top.
Proximity alerts
If the enrollee enters the zone, the victim is alerted and can see how close they are.
SOS with a safety window
One tap sends an SOS, with 10 seconds to slide and cancel before the agency call is made.
Agency on the same record
Every alert reaches the supervising agency in real time, on the linked record.

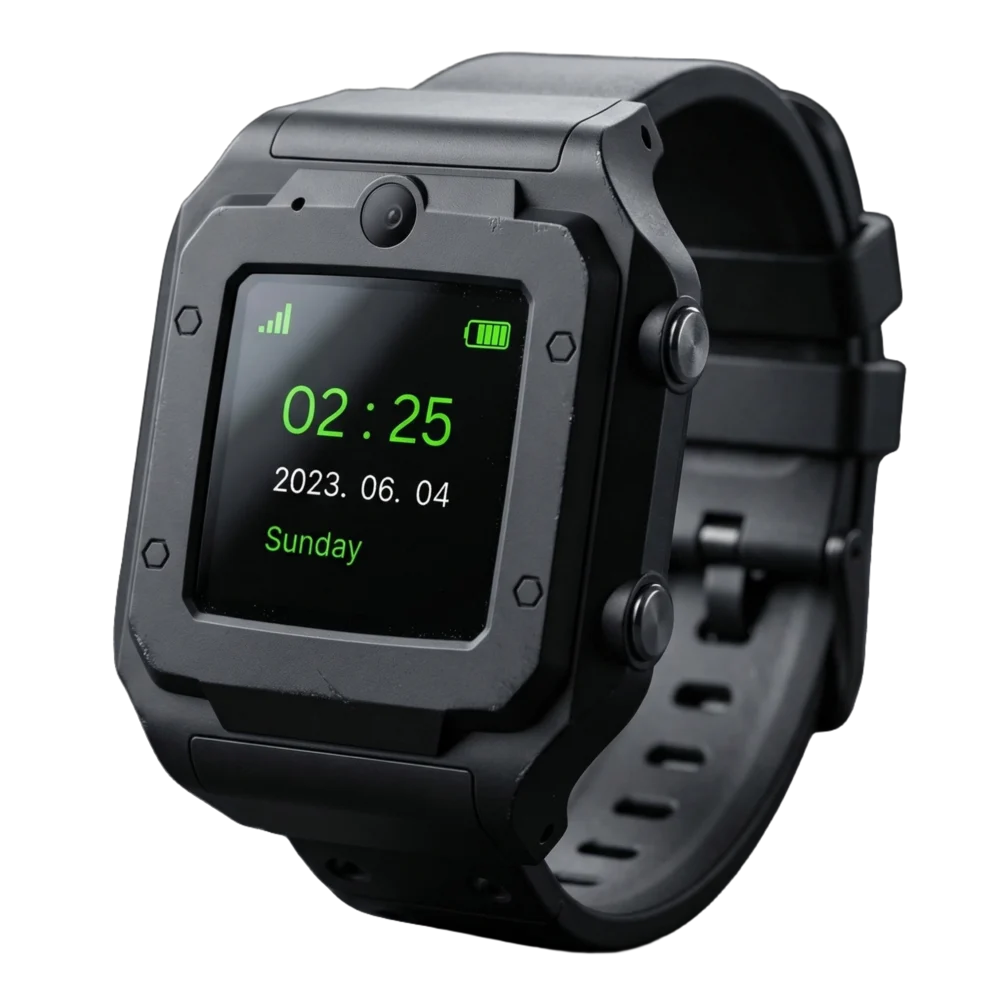

ShadoWatch
A rugged wrist-worn monitor that reads as everyday hardware while delivering the same continuous reporting back to the platform: a lower-profile option where an ankle device isn't the right fit.
Fitted to the wrist in minutes
Once the device is assigned to the enrollee in the monitoring database and fully charged, attach one end of the band, measure the wrist, then wrap it around and screw the other side into place. An "installation successful" message appears on the LED screen as soon as it starts communicating.
Minutes to fit
Quick, straightforward install: measure, wrap, and screw into place.
Tamper alarm
Any attempt to defeat the one-piece band triggers a Tamper Alarm.
Immediate alerts
Compliance deviations trigger SMS, email, or automated calls in real time.
Continuous location from the wrist
GPS, Wi-Fi, and LBS positioning across 56 GPS channels, with configurable tracking intervals and 1.5 hours of onboard location memory, 75–95 points per minute at one-minute intervals, so no movement is lost between reports.
A cordless Power Cell

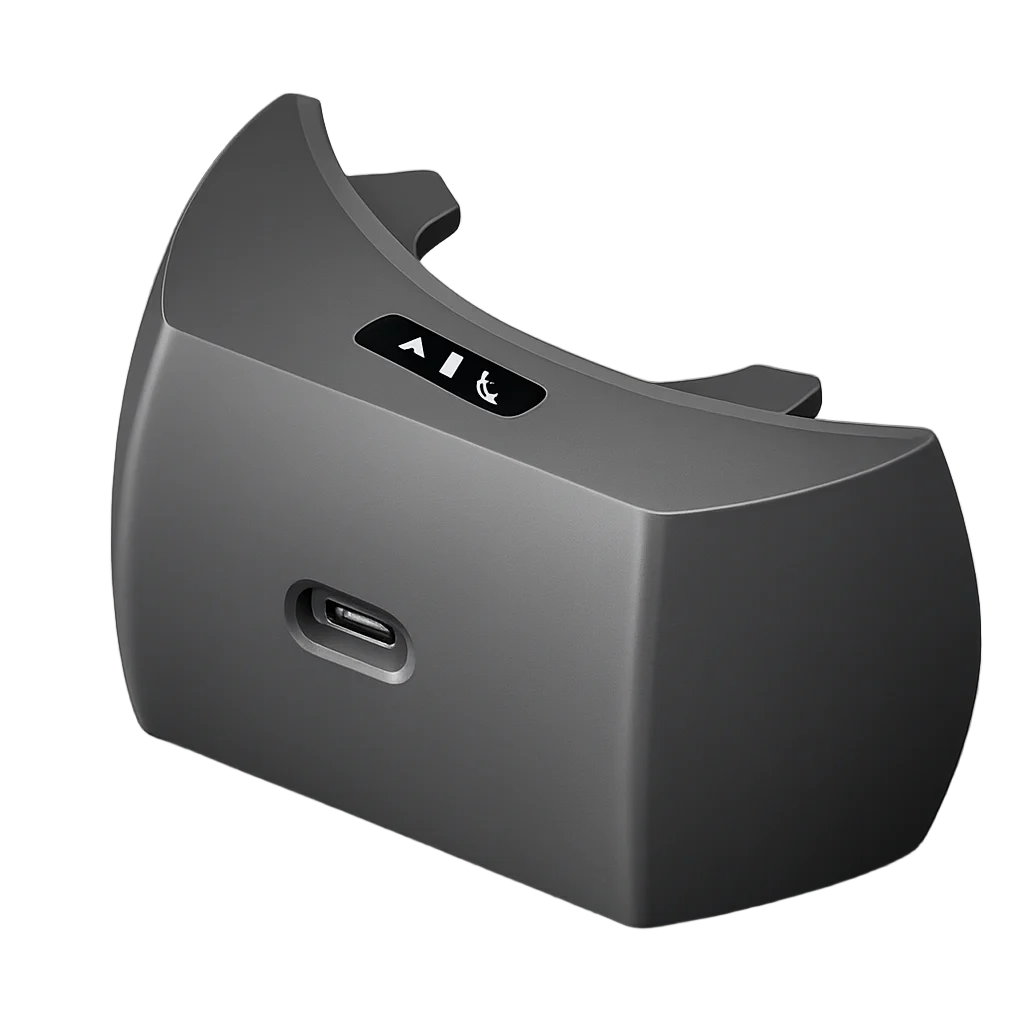

Portable charger
Cordless magnetic connection, recharge anywhere, shown at right.

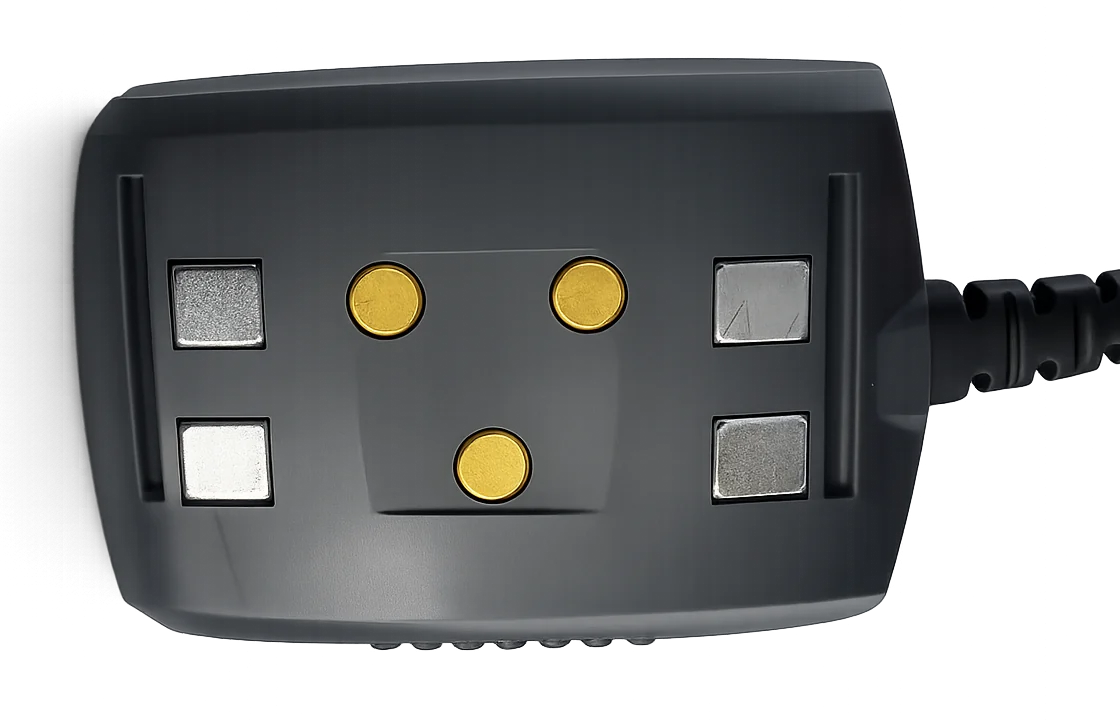

Wired charger
Same magnetic connection for a fixed charging point.
ShadoWatch performance data
- Dimensions
- 1.9 in W × 2.1 in H
- Weight
- 3.7 oz
- Satellite positioning
- GPS, Wi-Fi & LBS
- GPS channels
- 56
- Display
- 1.3 in TFT color LED screen
- Water resistance
- IP68 waterproof
- Location memory
- 1.5 hrs (75–95 points/min at 1-min)
- Connectivity
- Bluetooth
- Enrollee alerts
- Vibration: low battery, zone violation, etc.
- Charging
- Cordless magnetic: mobile & wired, 5VDC
- Battery runtime
- 20+ hrs (1-min) / 70+ hrs (5-min)
- Operating temperature
- From -10°C: ≥ 60%
- Construction
- Tamper-proof, one-piece band
- FCC identifier
- W-N70ST
14 configurable alarm conditions
Each can trigger officer notifications and enrollee vibration alerts.
- Device Com Timeout
- Device Com Timeout Escalated
- Failed To Charge
- Band Tamper
- Within Exclusion Zone
- Outside Inclusion Zone
- Lack Of Motion
- Battery Critical
- No Location
- No Location Escalated
- Motion No Location
- Motion No Location Escalated
- Within Exclusion Buffer Zone
- Within Inclusion Buffer Zone
ShadowTether + ShadowGateway
Interior tracking is a paired system. The person wears the ShadowTether; ShadowGateway readers mounted through the facility detect it as it moves, mapping location zone to zone, room to room, where satellite GPS can't reach.
A worn tag, read by fixed gateways
GPS stops at the wall. Interior tracking picks up where it leaves off: the ShadowTether broadcasts over Bluetooth Low Energy, and a mesh of ShadowGateway readers listens for it, resolving position by which gateway sees the strongest signal.
The person wears it
The ShadowTether rides on the wrist, broadcasting a secure BLE signal continuously.
Gateways read it
Fixed ShadowGateway readers throughout the facility detect the tag and log proximity.
Movement is mapped
The platform turns those reads into live position, zone to zone, room to room.

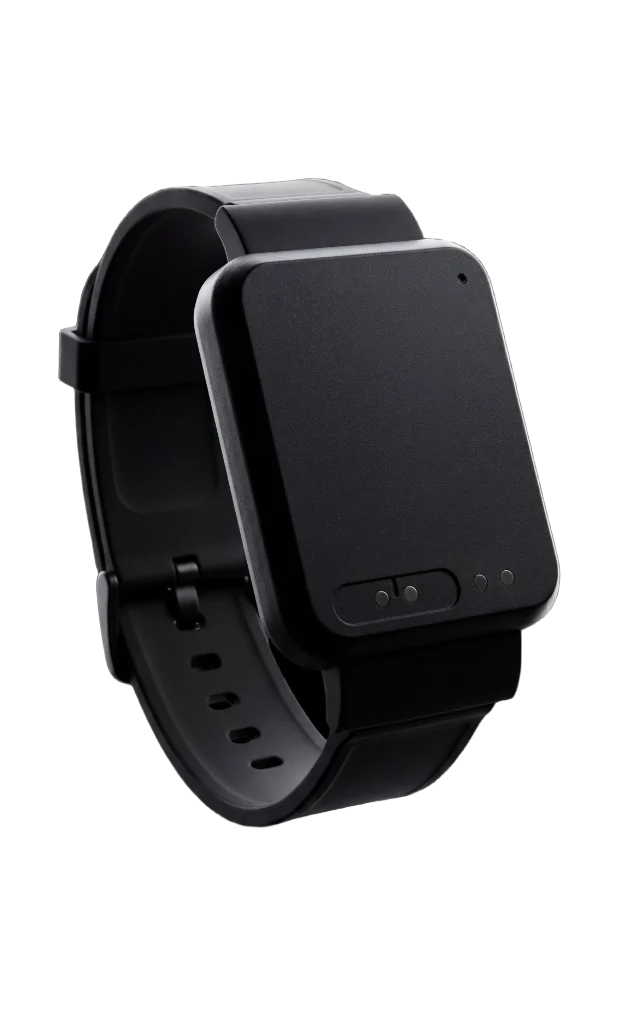

The tamper-proof worn tag
Tamper-proof
An alarm triggers the moment the band is cut, disassembled, or separated from the ShadowPhone.
Robust & water-proof
Protected against harsh environments, dust, and temporary water immersion.
Battery life
Up to six months per charge, topped up over a simple magnetic charger.
Temperature sensing
Monitors body temperature, providing an extra layer of security.
ShadowTether at a glance
- Wear
- Wrist-worn band & buckle
- Tamper protection
- Alarm on cut, disassembly, or separation from ShadowPhone
- Durability
- Robust: dust & temporary water immersion
- Onboard sensor
- Body temperature
- Battery per charge
- Up to six months
- Charging
- Magnetic charger
- Read by
- ShadowGateway over Bluetooth Low Energy

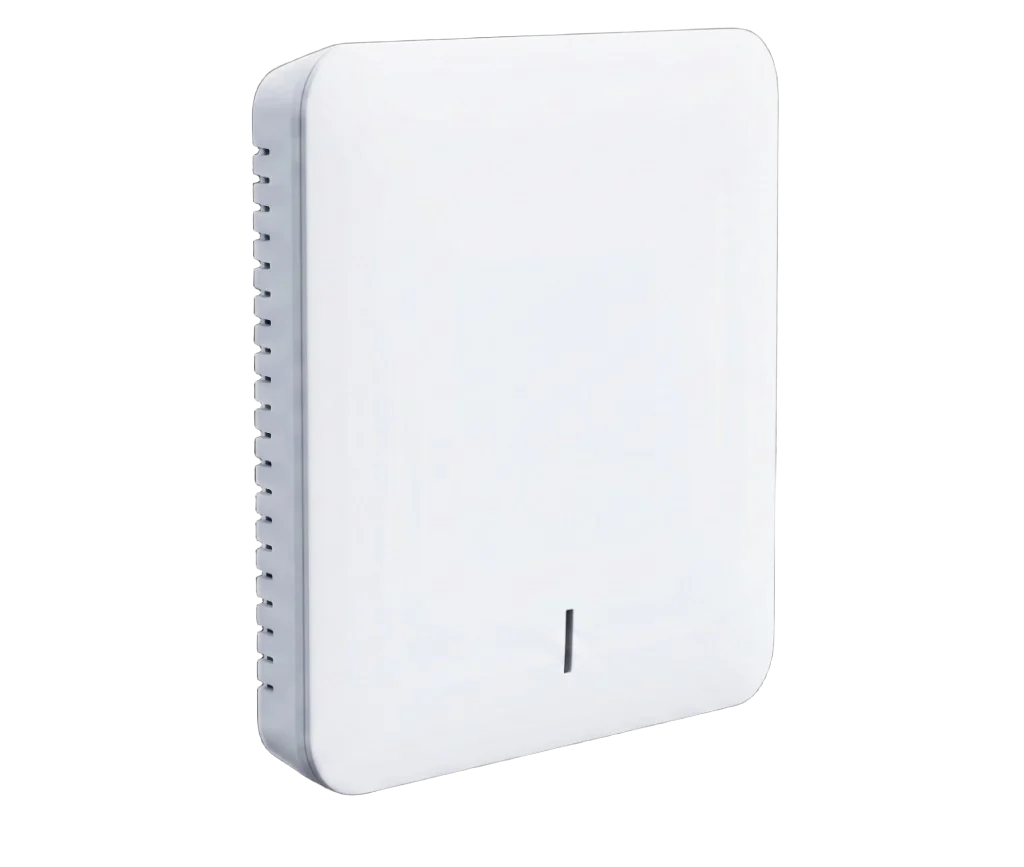

Fixed readers, indoors and out
ShadowGateway is the infrastructure that reads the ShadowTether. Each gateway uploads what it sees to the platform over Wi-Fi, Ethernet, or cellular. It comes in two variants; pick the one that suits where it's mounted.
Interior (KG02). The everyday reader for cell blocks and corridors: up to 350 m coverage, powered over PoE or a 5V adapter.
Exterior (KG03). A weather-sealed IP67 reader for yards and perimeters: long-range BLE up to ~1500 m from a single unit.
Interior gateway
Model KG02
The everyday reader mounted through cell blocks, corridors, and common areas, powered over the network cabling you already run.
Use inside the building, where readers sit close together.
- Model
- KG02
- BLE coverage
- Up to 350 m (1 Mbps, open area)
- Bluetooth
- BLE 4.0 / 4.1 / 4.2 / 5.0 / 5.1
- Scanning
- >250 packets / sec
- Connectivity
- Wi-Fi, Ethernet (RJ45), cellular 3G/4G (optional)
- Power
- DC 5V/1A or 802.3af PoE
- Mounting
- Screws or brackets
- Environmental
- Indoor use (not waterproof)
- Operating temp.
- −30 °C to +50 °C
- Humidity
- ≤ 65% RH
- Size / weight
- 165 × 165 × 25 mm, 270 g
- Material
- ABS
- Indicator
- RGB LED
- Optional GNSS
- GPS / GLONASS / BeiDou (30 m accuracy)
Exterior gateway
Model KG03
A ruggedized long-range reader for yards, perimeters, and sally ports, sealed against weather and built for far fewer mounting points.
Use outdoors and across open ground, up to ~1500 m per reader.
- Model
- KG03
- BLE coverage
- Up to 1500 m (125 kbps) / 400 m (1 Mbps), open area
- Bluetooth
- BLE 4.0–5.1, Coded PHY, built-in LNA/PA (19 dBm max)
- Scanning
- >260 packets / sec
- Connectivity
- Wi-Fi, Ethernet (RJ45), cellular 3G/4G (optional)
- Power
- DC 9–12V/1A or 802.3af PoE
- Mounting
- Wall/flat surface or column (brackets + stainless zip ties)
- Environmental
- IP67 waterproof & shockproof
- Operating temp.
- −30 °C to +75 °C
- Humidity
- 5% – 95% RH
- Size / weight
- 220 × 110 × 75 mm, 350 g
- Material
- ABS / PC
- MCU
- Qualcomm QCA9531
- Optional GNSS
- GPS / GLONASS / BeiDou (30 m accuracy)

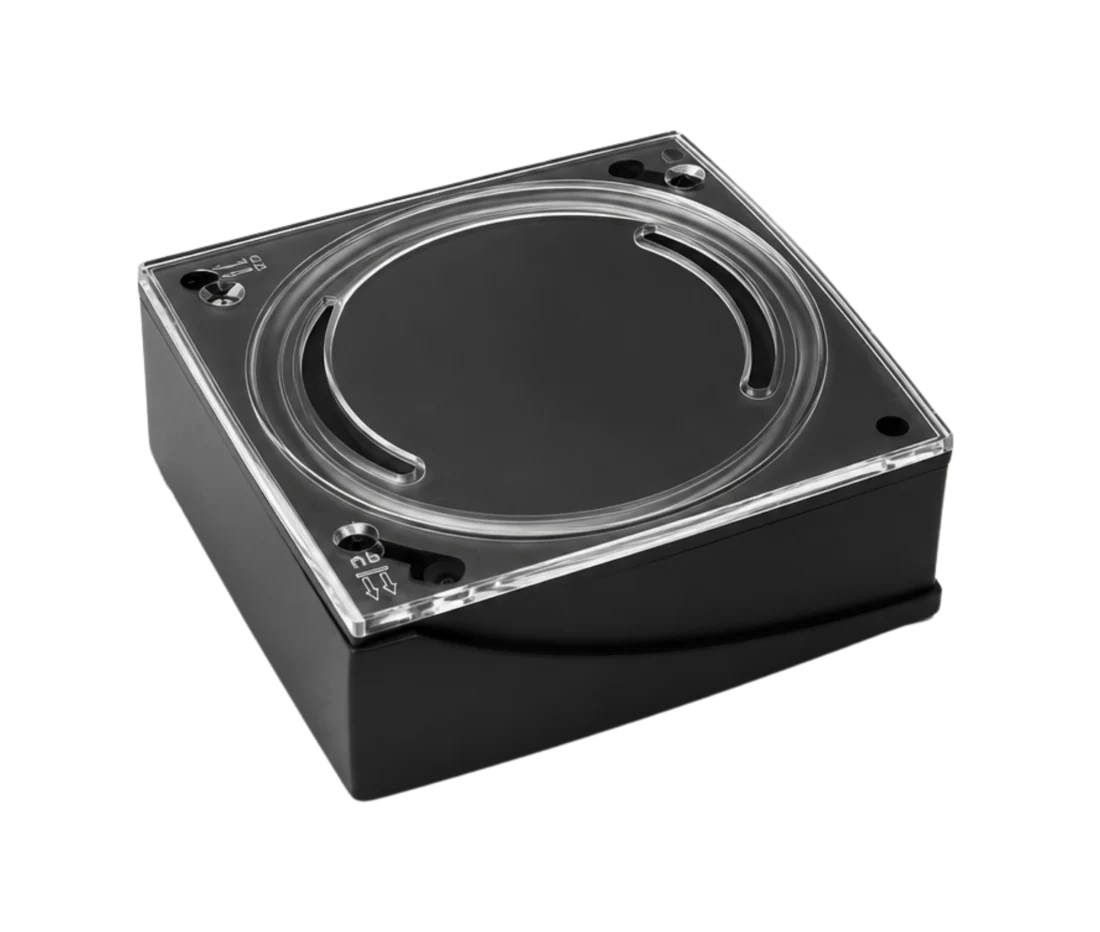

ShadowBeacon
ShadowBeacon is a radio-frequency (RF) transmitter that communicates with the GPS bracelet to deliver consistent indoor location within a specific site, reinforcing coverage where satellite positioning alone can fall short inside a building.
Placed inside an enrollee's home, it anchors a verified indoor location and works hand-in-hand with the ShadowCuff ankle monitor to confirm presence and curfew from the moment they walk through the door.
Status and alarms travel inside those transmissions, relayed through the associated bracelet back to the platform.

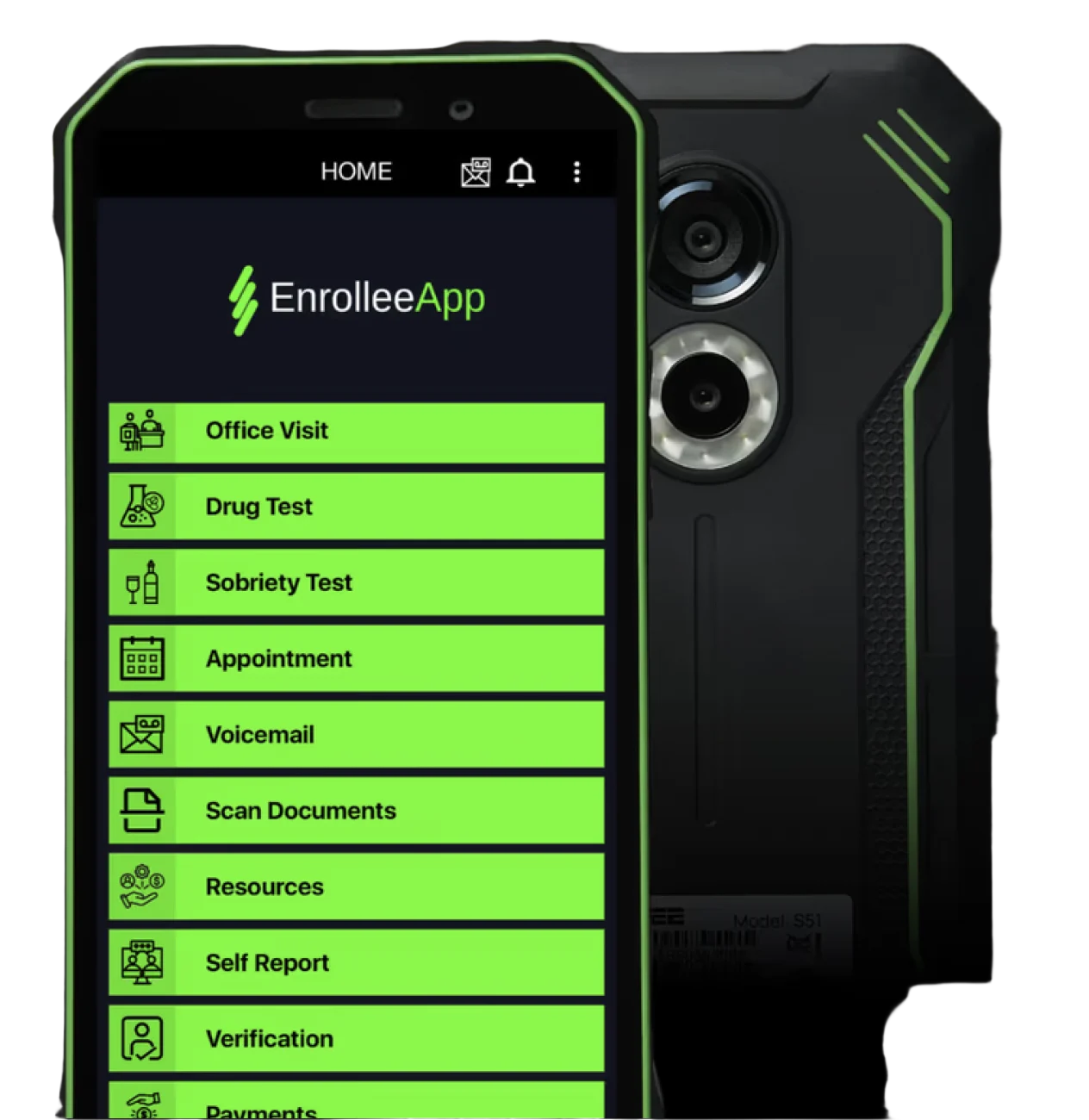

ShadowPhone
A fully locked-down phone provided by Shadowtrack, a tracking device in its own right. It ships with the EnrolleeApp pre-installed, every permission under agency control, and continuous location reporting from the moment it's handed over.
Every permission controlled, nothing to undo
The ShadowPhone isn't the enrollee's phone with an app on it; it's an agency-managed device. All permissions are controlled by Shadowtrack, and the enrollee can't delete the EnrolleeApp, log out of it, or change settings.
Fully locked-down software
Every permission on the device is controlled, so the enrollee can't change a single setting.
Can't delete, can't log out
The EnrolleeApp is pinned to the device. There is no way to remove it or sign out of it.
Tamper-proof
Hardened against interference, so the handset keeps reporting no matter what.
Continuous location, every 3 minutes
The handset reports its position over GPS and Wi-Fi around the clock, on battery life of up to five days per charge.
ShadowPhone × ShadowTether
The phone works on its own. Pair it with the wrist-worn ShadowTether when you need to guarantee it stays on the person.
Separation alarm. If the ShadowTether and ShadowPhone separate, an alarm triggers and a loud noise plays continuously on the phone until they're back together.
The ShadowTether is worn on the wrist at all times, turning the ShadowPhone into a two-piece tracking setup: the tether guarantees the phone travels with the person, not in a drawer.
Tamper-proof band & buckle
Alarm triggered if the band is cut, disassembled, or separated from the ShadowPhone.
Robust & water-proof
Protection against harsh environments, dust, and temporary water immersion.
Six-month battery
Up to six months per charge, topped up over a simple magnetic charger.
Body temperature sensor
Monitors body temperature for an extra layer of presence assurance.
9 configurable alarm conditions
Each can trigger officer notifications and enrollee vibration or audio alerts.
- Device Com Timeout
- Device Com Timeout Escalated
- Within Exclusion Zone
- Outside Inclusion Zone
- Band Lost
- Phone Battery Critical
- Band Tamper
- Within Exclusion Buffer Zone
- Within Inclusion Buffer Zone

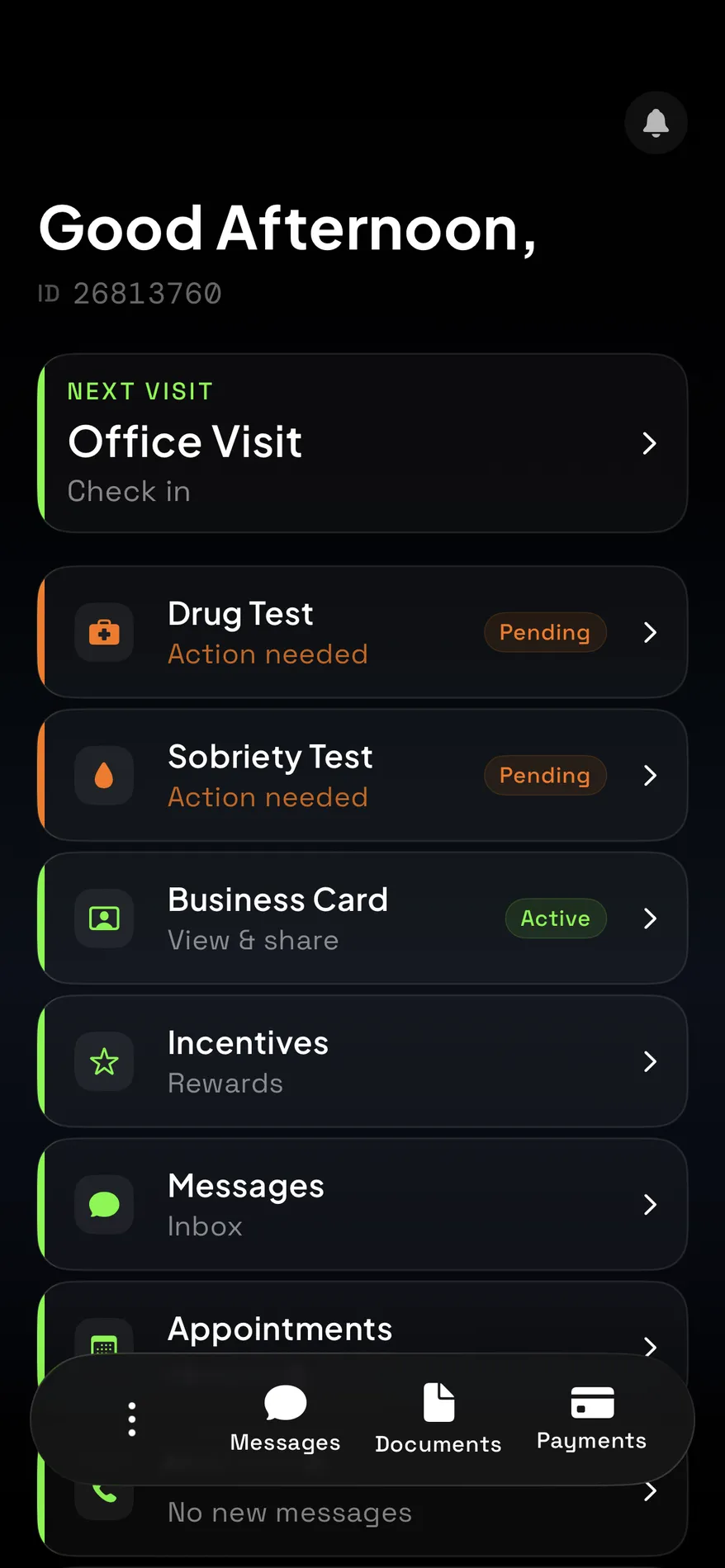

Full-time tracking on the enrollee's own phone
For lower-touch cases, agencies can enable full-time tracking on the regular EnrolleeApp running on the enrollee's own device: a lighter-weight service option without an issued handset. It relies on the enrollee's phone and doesn't carry the ShadowPhone's lockdown guarantees.
When they run, you stay on them
When an enrollee absconds, switch to Pursuit mode: Shadowtrack tightens to a new location every 15 seconds, redrawing the map and connecting each point into a live trail you can follow.
The software that turns location into action
Hardware reports the position; the platform decides what matters. These are the flagship surfaces your team works in every day.
2
Critical
2
High
1
Routine
Marcus J. Rivera
Devon Pierce
Carlos Vega
Lila Marsh
Roy CalderEvery alarm, ranked and routed
Breaches, tampers, lost fixes, curfew and battery events all land in one queue, graded Critical, High, or Routine and escalated to the right responder automatically, so the urgent ones can't get buried.
- Severity-ranked in real time, the moment an event fires.
- Automatic escalation along each agency's protocol until acknowledged.
Recurring visit points
The places they keep going back to
Shadowtrack watches how long an enrollee dwells and learns the locations they return to. Recurring visit points build a pattern, and a new, unexplained one gets flagged for review.
- Dwell time and visit frequency per location.
- New or off-pattern visit points surfaced automatically.
Common questions about monitoring devices
What is the ShadowCuff ankle monitor?
ShadowCuff is Shadowtrack's GPS ankle monitor. It tracks with multi-constellation GNSS (GPS, Galileo, GLONASS, BeiDou), is IP68 submersible, uses dual-SIM 4G coverage, and installs tool-free in under 20 seconds. It can be removed with an officer key on-site or released remotely from the platform anywhere in the world, with every remote release requiring a reason and logged to the record. It also charges two ways: a portable charger that snaps onto the device or a wired magnetic charger.
How long does the ShadowCuff battery last?
The ShadowCuff runs 80 to 100 hours on a charge depending on tracking configuration. The wrist-worn ShadoWatch runs 20 to 70 hours depending on its reporting interval.
What is the ShadoWatch?
ShadoWatch is a tamper-resistant, wrist-worn GPS device. It is IP68 waterproof with a rugged, low-profile build, uses a one-piece tamper-proof band, runs 20 to 70 hours per charge depending on its reporting interval, and offers a less stigmatizing alternative to an ankle monitor for lower-risk cases.
What tamper and violation alarms does Shadowtrack monitor?
Available alarms differ by device, and the platform supports more than 15 alert types. Some of them are band tamper, exclusion zone violations, inclusion zone violations, buffer zones, low battery, battery critical and failed to charge, lack of motion, loss of signal, and no location. Alerts route to the supervising agency in real time.
How does interior tracking work without GPS?
ShadowGateways listen for the Bluetooth signal from the worn ShadowTether and resolve a person's position by which readers detect it, locating people inside buildings where GPS cannot reach. Exterior ShadowGateway models, IP67 rated, extend coverage to yards and perimeters up to 350 meters.
Does Shadowtrack offer victim protection?
Yes. ShadowGuardian, Shadowtrack's victim app, is included with the ShadowCuff at no cost. Victims sign their agreement digitally and get their own profile in the platform, linked to one or more enrollees, with a floating protection zone that travels with them and buffer zones on top. If the enrollee gets into proximity, the victim is alerted and can see how close they are, and every alert also goes to the agency.
Can agencies mix monitoring methods on one platform?
Yes. ShadowCuff, ShadoWatch, ShadowBeacon, smartphone monitoring, and interior tracking all report into the same Shadowtrack platform, so an agency can step supervision up or down without changing systems.
See continuous monitoring in action
From a single ankle cuff to an entire monitored population, see how Shadowtrack unifies every device, zone, and alarm into one platform.
